HIGH-PRESSURE LAMINATE FORMING EQUIPMENT

Slotformer® – High-Performance 180° Laminate Wrapping Machine

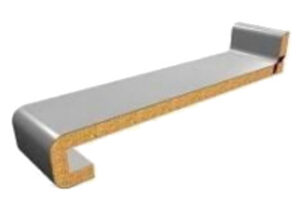

The Slotformer® is engineered to deliver fast, efficient 180° wraparounds with a clean, professional finish and just one seam on the backside. Designed in response to customer demand, this machine is the quickest and most cost-effective solution for full wrap-around applications using high-pressure laminates and real wood veneers.

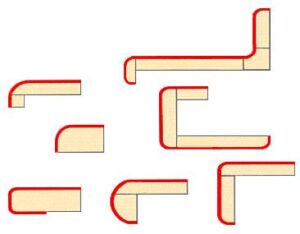

Ideal for both experienced and new operators, the Slotformer® enables users to produce hundreds of precision wraps per day with minimal training. From thicker countertop laminates to thinner cabinet materials, the Slotformer® supports a wide range of formable HPL surfaces. In addition to full 180° wraps, it can also create 90-degree bends, no-drip edges, and many custom profiles with ease.

Key Features:

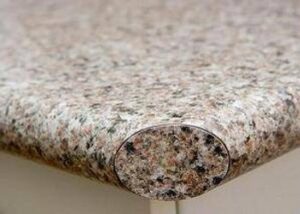

• Adjustable rear platen accommodates rolled edge diameters from 6-1/4” and smaller

• Model SF-12: 150” L x 26” W x 30” H with a 157” Dual Quartz Heater

• Model SF-6: 78” L version for more compact applications

• Divided pressure platens for left/right control (SF-12 only)

• Easy mode selection: 6 ft. or 12 ft. operation via intuitive control panel

• Compatible with 208/230V single-phase power (SF-12: 40 amps; SF-6: 30 amps)

• Integrated air regulator and gauge for precise pressure control

• Includes Tempilaq temperature indicator and full operation manual

• Covered by a limited one-year warranty

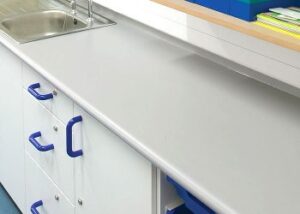

Whether you’re working with laminate countertops or veneered cabinetry, the Slotformer® increases throughput, reduces labor, and improves the quality of every wrap. It’s the go-to laminate wrapping machine for manufacturers seeking speed, reliability, and precision.
